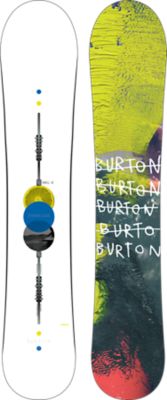

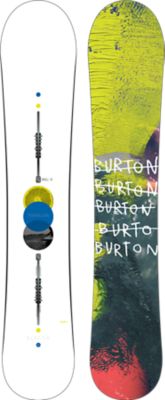

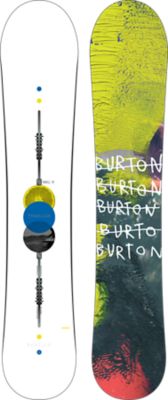

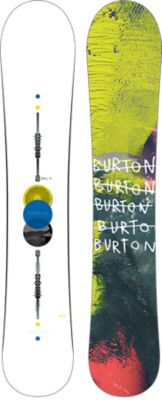

2016 Barracuda Size Chart

Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard
BOARD SIZE 153cm 157cm 161cm 165cm
RUNNING LENGTH 1115mm 1145mm 1185mm 1225mm
WAIST WIDTH 248mm 252mm 255mm 257mm
SIDECUT DEPTH 20.5mm 21.0mm 21.8mm 22.5mm
SIDECUT RADIUS 7.6m 7.8m 8.1m 8.4m
STANCE WIDTH 530mm 530mm 560mm 560mm
NOSE WIDTH 296.4mm 301.5mm 306.0mm 309.5mm
TAIL WIDTH 281.4mm 286.5mm 291.0mm 294.5mm
EFFECTIVE EDGE 1165mm 1195mm 1235mm 1275mm
STANCE LOCATION -50 -50 -50 -50
WEIGHT RANGE 135-175 lbs. / 61-79 kg 145-185 lbs. / 66-84 kg 165-205 lbs. / 75-93 kg 170-210 lbs.+ / 77-95 kg+
BINDING SIZES Medium Medium/Large Large Large

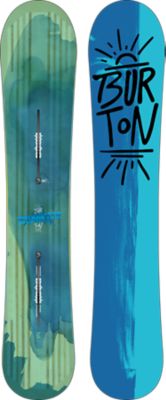

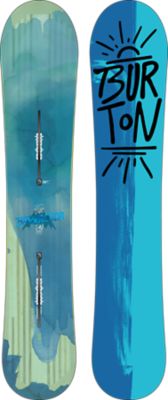

    2015 BARRACUDA SIZE CHART
Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard
BOARD SIZE 153cm 157cm 161cm 165cm 169cm
RUNNING LENGTH 1115mm 1145mm 1185mm 1225mm 1265mm
WAIST WIDTH 248mm 252mm 255mm 257mm 259mm
SIDECUT DEPTH 20.5mm 21.0mm 21.8mm 22.5mm 23.2mm
SIDECUT RADIUS 7.6m 7.8m 8.1m 8.4m 8.6m
STANCE WIDTH 530mm 530mm 560mm 560mm 560mm
NOSE WIDTH 296.4mm 301.5mm 306.0mm 309.5mm 312.9mm
TAIL WIDTH 281.4mm 286.5mm 291.0mm 294.5mm 297.9mm
EFFECTIVE EDGE 1165mm 1195mm 1235mm 1275mm 1315mm
STANCE LOCATION -50 -50 -50 -50 -50
WEIGHT RANGE 135-175 lbs. / 61-79 kg. 145-185 lbs. / 66-84 kg. 165-205 lbs. / 75-93 kg. 170-210 lbs.+ / 77-95 kg.+ 175-215 lbs.+ / 79-98 kg.+
BINDING SIZES Medium Medium/Large Large Large Large

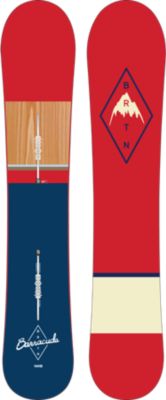

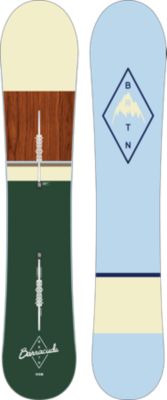

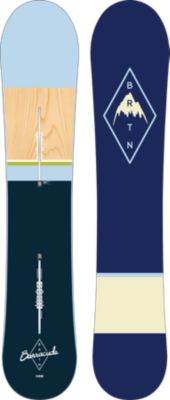

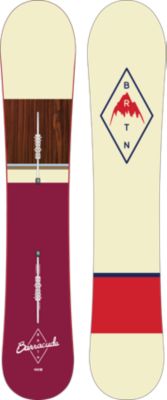

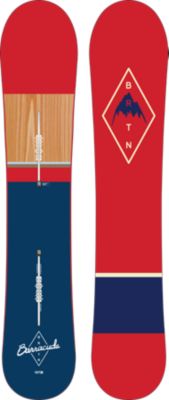

  2014
Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard
BOARD SIZE 149cm 153cm 157cm 161cm 165cm 169cm
RUNNING LENGTH 1075mm 1115mm 1145mm 1185mm 1225mm 1265mm
WAIST WIDTH 243mm 248mm 252mm 255mm 257mm 259mm
SIDECUT DEPTH 19.7mm 20.5mm 21.0mm 21.8mm 22.5mm 23.2mm
SIDECUT RADIUS 7.33m 7.61m 7.81m 8.08m 8.36m 8.63m
STANCE WIDTH 530mm 530mm 530mm 560mm 560mm 560mm
NOSE WIDTH 290mm 296.4mm 301.5mm 306mm 309.5mm 312.9mm
TAIL WIDTH 275mm 281.4mm 286.5mm 291.0mm 294.5mm 297.9mm
EFFECTIVE EDGE 1125mm 1165mm 1195mm 1235mm 1275mm 1315mm
STANCE LOCATION 50 50 50 50 50 50
WEIGHT RANGE 110-160 lbs. / 50-73 kg. 130-180 lbs. / 59-82 kg. 140-190 lbs. / 64-86 kg. 160-210 lbs. / 73-95 kg. 165-215 lbs.+ / 75-98 kg.+ 170-220 lbs.+ / 77-100 kg.+
BINDING SIZES Small Medium Medium/Large Large Large Large

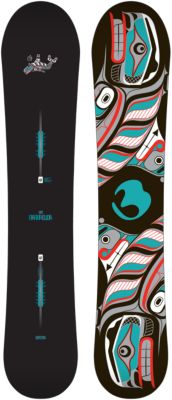

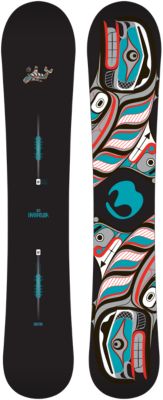

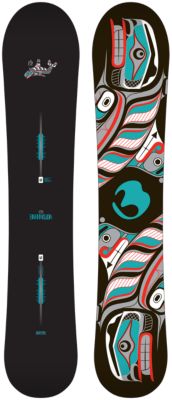

2013 Burton Barracuda Specs

Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard
BOARD SIZE 149cm 153cm 157cm 161cm 165cm 169cm
RUNNING LENGTH 1075mm 1115mm 1145mm 1185mm 1225mm 1265mm
WAIST WIDTH 243mm 248mm 252mm 255mm 257mm 259mm
SIDECUT DEPTH 19.73mm 20.46mm 21.01mm 21.75mm 22.48mm 23.22mm
SIDECUT RADIUS 7.33m 7.61m 7.81m 8.08m 8.36m 8.63m
STANCE WIDTH 530mm 530mm 530mm 560mm 560mm 560mm
NOSE WIDTH 289.96mm 296.42mm 301.52mm 306mm 309.46mm 312.94mm
TAIL WIDTH 274.96mm 281.42mm 286.52mm 291mm 294.46mm 297.94mm
EFFECTIVE EDGE 1125mm 1165mm 1195mm 1235mm 1275mm 1315mm
STANCE LOCATION 50 50 50 50 50 50
WEIGHT RANGE 110-160 lbs. / 50-73 kg. 130-180 lbs. / 59-82 kg. 140-190 lbs. / 64-86 kg. 160-210 lbs. / 73-95 kg. 165-215 lbs.+ / 75-98 kg.+ 170-220 lbs.+ / 77-100 kg.+
BINDING SIZES Small Medium Medium/Large Large Large Large

Burton Barracuda 2012

Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard Barracuda Snowboard
BOARD SIZE 149cm 153cm 157cm 161cm 165cm 169cm
RUNNING LENGTH 1080mm 1115mm 1145mm 1185mm 1225mm 1265mm
WAIST WIDTH 243mm 248mm 252mm 255mm 257mm 259mm
SIDECUT DEPTH 19.73mm 20.46mm 21.01mm 21.75mm 22.48mm 23.22mm
SIDECUT RADIUS 7.4m 7.61m 7.81m 8.08m 8.36m 8.63m
STANCE WIDTH 530mm 530mm 530mm 560mm 560mm 560mm
NOSE WIDTH 289.96mm 296.42mm 301.52mm 306mm 309.46mm 312.94mm
TAIL WIDTH 274.96mm 281.42mm 286.52mm 291mm 294.46mm 297.94mm
EFFECTIVE EDGE 1130mm 1165mm 1195mm 1235mm 1275mm 1315mm
STANCE LOCATION 50 50 50 50 50 50
WEIGHT RANGE 90-140 lbs. / 41-64 kg. 115-165 lbs. / 52-75 kg. 125-175 lbs. / 57-79 kg. 145-195 lbs. / 66-88 kg. 155-205 lbs. / 70-93 kg. 175-210+ lbs. / 79-95 kg.
BINDING SIZES Small Medium Medium/Large Large Large Large
